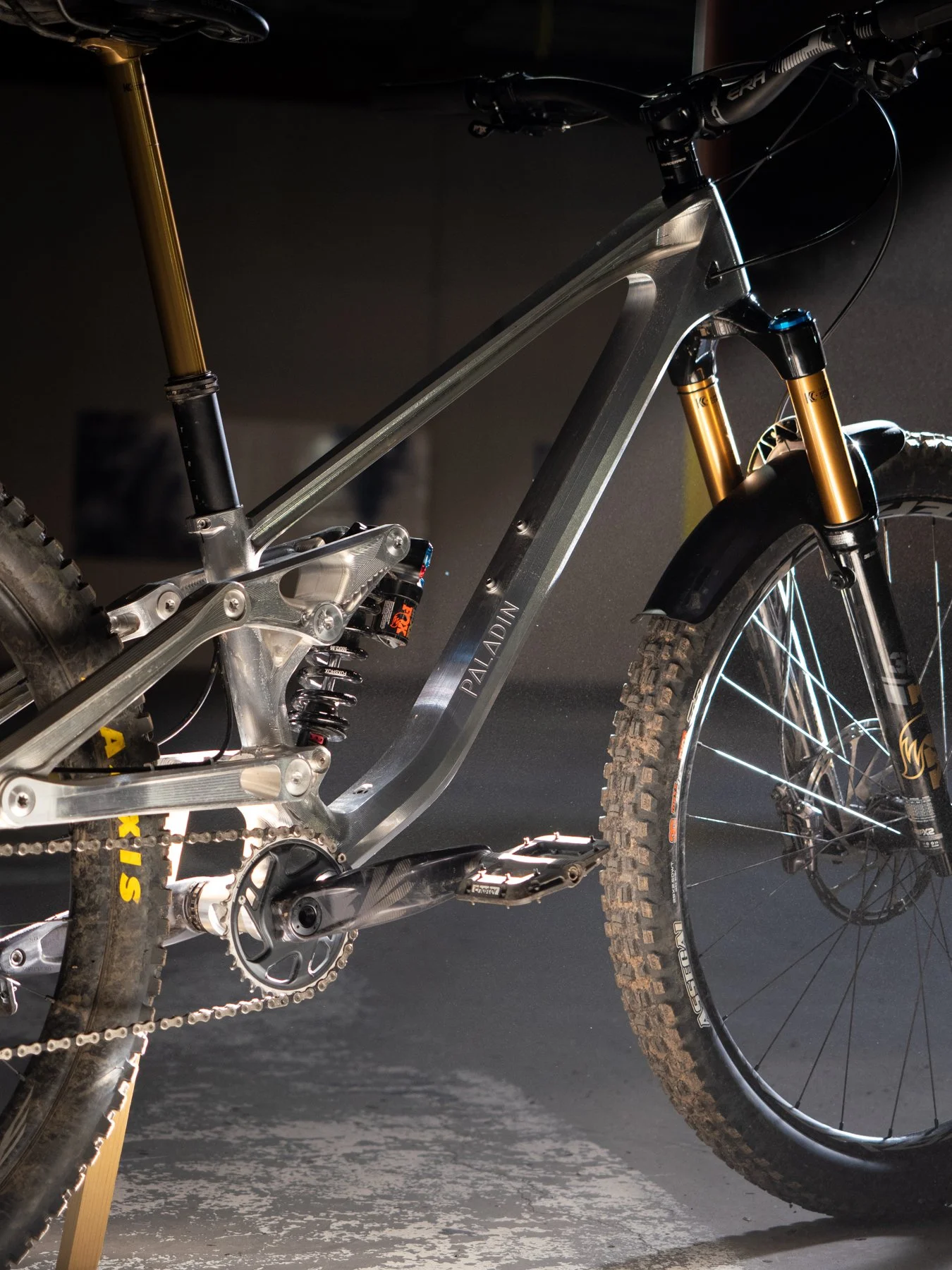

Paladin AM1 - Coming Soon

The classic all-mountain bike reimagined.

Multi-axis machined 7075 aluminum construction.

Elevated suspension, configurable travel, chainstay length and wheel size.

Proudly made in the PNW.

Size:
Travel:
Wheel Size:
Build Option:
Add To Cart

The Whole Mountain.

The AM1 is a bike built for what we ride here in the PNW. Rocks, roots and general jank one day. Flow trails and jumps the next. The AM1 has got your back.

Elevated suspension provides unmatched bump absorption and support, even under heavy braking. Choose the wheel size and chainstay length you want to run.

We build the AM1 to order in our shop in Portland, Oregon. Reach out if you want a custom build or engraving.

Paladin Bikes are built like none other. Check out our machining process.

Frame Specifications

Shock Size 185x55 (150 mm) or 185x50 (140 mm)
Shock Compatibility Air or Coil
max. Axle to Crown 586 mm
max. Tire Width 2.5 inch
Hub Spacing Boost 148
Seat Post Diameter 34.9 mm
Headset IS41/52
Bottom Bracket 73 mm BSA (Threaded)
Derailleur Hanger SRAM UDH
max. Chainring Size 32T
CAD_Iso_front 16-9.png
CAD_Side 16-9.png
CAD_Iso_rear 16-9.png
PC170671-Standard Web Export-2.jpg

Geometry

160F/150R

Frame Size S M L XL
Reach 420 445 470 495
Stack 615 623 630 637
Chainstay Length (Standard) 432 436 440 444
Bottom Bracket Drop 16 16 16 16
Head Tube Angle 64.5 64.5 64.5 64.5
Effective Seat Tube Angle 78.0 77.5 77.1 76.8
Seat Tube Length 300 300 310 370
Rec. Rider Height 5'0" to 5'5" 5'4" to 5'9" 5'8" to 6'1" 6'0" to 6'5"

150F/140R

Frame Size S M L XL
Reach 425 450 475 500
Stack 612 619 626 634
Chainstay Length (Standard) 432 436 440 444
Bottom Bracket Drop 19 19 19 19
Head Tube Angle 64.9 64.9 64.9 64.9
Effective Seat Tube Angle 78.4 77.9 77.5 77.2
Seat Tube Length 300 300 310 370
Rec. Rider Height 5'0" to 5'5" 5'4" to 5'9" 5'8" to 6'1" 6'0" to 6'5"
